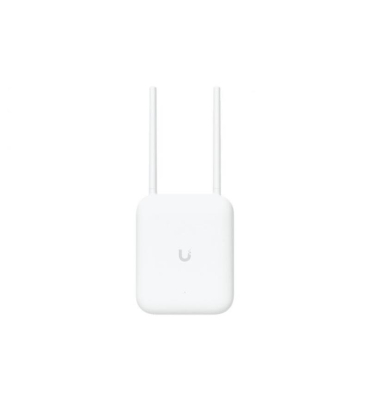

The Ubiquiti U7 Pro Outdoor is a new outdoor dual-band unit supporting Wi-Fi 7 and rated as IP67. It operates in the 2.4 GHz band at speeds of up to 688 Mbps and the 5 GHz band at up to 8.6 Gbps. The unit features a built-in antenna with a gain of 8-11 dBi and a 90° beamwidth. Additionally, the package includes two external omnidirectional antennas that can be connected via RP-SMA connectors located at the top. For network connectivity, it provides a LAN port supporting speeds of up to 2.5 Gbps. The access point is powered via PoE+ (adapter not included).

The access point offers versatile mounting options for walls, ceilings, or poles, and includes mounting accessories in the package, along with a weatherproof cable gland for outdoor use.

Centralized Unit Management

The device requires downloading the official UniFi Controller software from the official website, which enables centralized network management. A significant advantage of the UniFi Controller is that it is completely free without any limitations! This central management system allows you to upload maps, configure basic parameters such as SSID, guest accounts, splash pages, traffic statistics, and view a list and status of connected clients quickly and easily.

Benefits of UniFi Solutions

Zero Handoff Roaming - seamless transition between access points
Wireless uplink (ideal for locations where a data cable cannot be run)
Up to 8 SSIDs
Detailed traffic statistics
Guest network
Voucher system
Load balancing - maintaining balanced client distribution
Bandwidth limiting for each SSID
Package Contents

Device
Wall, ceiling, and pole mounts
Weatherproof cable gland
Drilling template
Cable tie
Mounting kit

Wireless features

Wireless frequency:2.4 + 5 GHz (dual band)
WiFi standards:802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be
MU-MIMO:Yes
Hotspot 2.0:Yes
Transmission speed - 5GHz [Mb/s]:8600
Transmission speed - 2.4GHz [Mb/s]:688
Tx power 2.4GHz [dBm]:23
Tx power 5GHz [dBm]:29
Security:WPA, WPA2, WPA3
Azimuth beam width (-6dB) [°]:90
2.4GHz MIMO:2 x 2
5GHz MIMO:2 x 2
Type of antenna:Built-in, Detachable
Internal antennas:1
Detachable antennas:2
Roaming:Yes
Antenna gain [dBi]:6, 10, 8, 11

Connectors and Interfaces

RF connectors:(2) RSMA female
LAN speed:(1) 1G/2.5Gbps
Gigabit LAN:Yes
Power over Ethernet:42 .. 57V DC
Max. power consumption [W]:21
