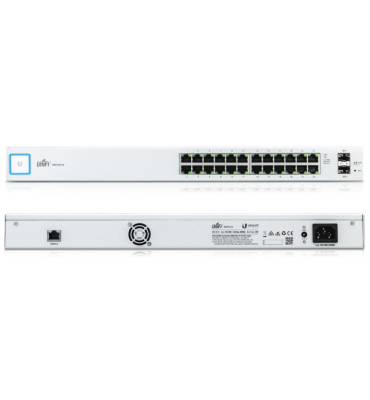

US-24 - UniFiSwitch 24 (Non-PoE Model)
Build and expand your network with Ubiquiti Networks UniFi Switch, part of the EdgeMAX line of products. The UniFi Switch is a fully managed, Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The UniFi Switch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
For its total, non-blocking throughput it supports up to 26 Gbps.
Main Features

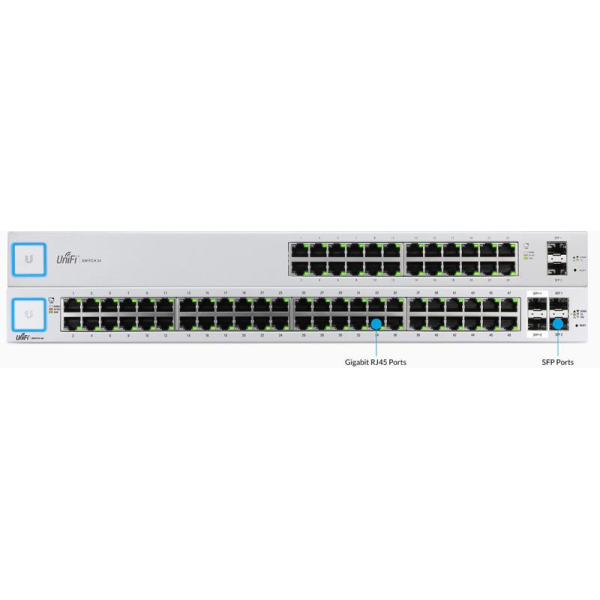

(24) Gigabit RJ45 ports
(2) SFP ports
(1) Serial console port (reserved for future use)
Non-blocking throughput: 26 Gbps
Switching capacity: 52 Gbps
Forwarding rate: 38.69 Mpps
Maximum power consumption: 25W
Quiet, Fanless Operation

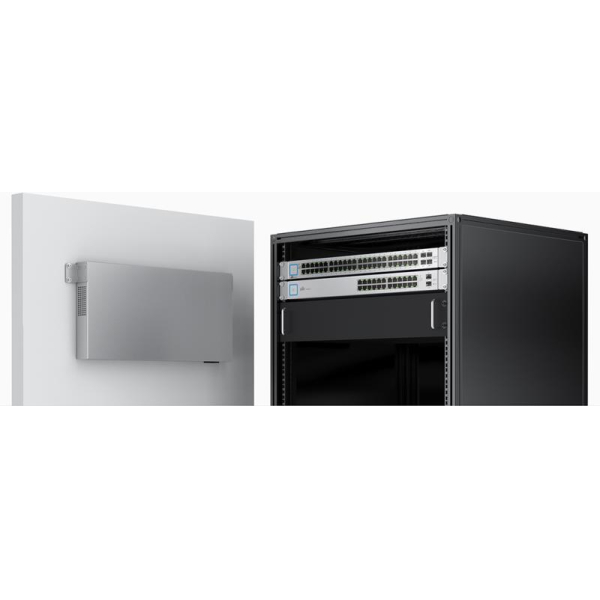

Rackmountable

Technical Specification
Dimensions 443 ? 43 ? 221 mm
Weight 2.6 kg
Total Non-Blocking Throughput 26Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Max. Power Consumption 25W
Power Method 100-240VAC/50-60Hz, Universal Input
Power Supply AC/DC, Internal, 25W DC
LEDs Per Port Speed/Link/Activity
Networking Interfaces 24x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports
Management Interface Ethernet In/Out of Band
Certifications CE, FCC, IC
Rackmount yes, 1U
ESD/EMP Protection Air: ±24kV, Contact: ±24kV
Operating Temperature -5 to 40°C
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
