CRS212-1G-10S-1S+IN
CRS212-1G-10S-1S+IN
Προγραμματιζόμενο δικτυακό router
Kωδικός 004341

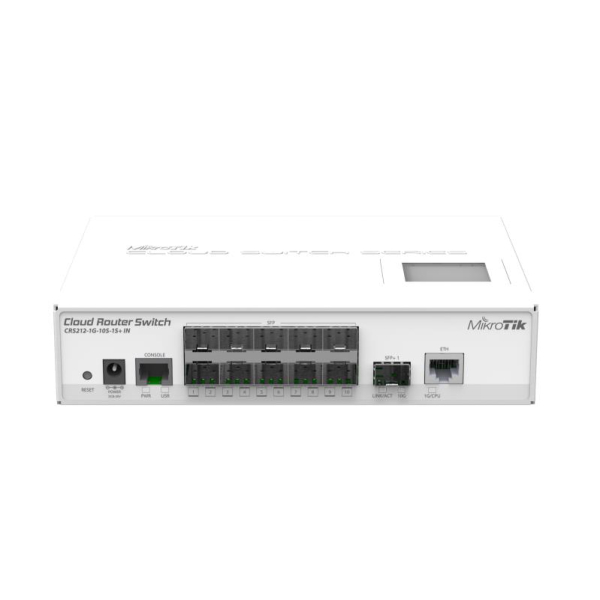

Cloud Router Switch 212-1G-10S-1S+IN is new ?small size low cost? member of our CRS series. It comes with one Gigabit Ethernet RJ45 port, ten SFP cages and one 10G SFP+ cage, as well as LCD panel and serial port (RJ45). Product includes indoor desktop case and power supply.Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Memory

DDR2 64MB

Ethernet

1x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X

SFP

1x 10G SFP+ cage, 10x SFP cages (Mini-GBIC; SFP+ module not included),
DDMI support

Storage

128MB Onboard NAND with multiple OS partition support

Serial port

One RJ45 serial port

Extras

Reset switch; beeper; voltage and temperature monitoring, touchscreen LCD

Power options

8-30V, 24V 1.2A PSU included

Power consumption

20W

Case dimensions

200x144x47mm

Temperature

-35C to +65C tested

OS

MikroTik RouterOS v6, Level 5 license

Included

CRS switch, power adapter

pdf

Φυλλάδιο Προϊόντος CRS212-1G-10S-1S+IN της ISNet

(μέγεθος: 97 KB | ενημερώθηκε: 26-09-2018)
Download
pdf

εγχειρίδιο προιόντος CRS212-1G-10S-1S+IN

(μέγεθος: 402 KB | ενημερώθηκε: 26-09-2018)
Download
