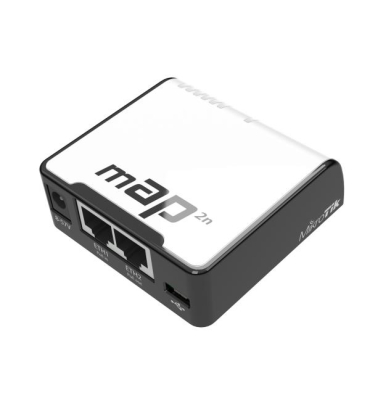

The mAP is a tiny size wireless Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, PoE and power jack.In addition to using this device as a small and portable AP, it also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
?PoE in 10-57V
?Built in 2,4GHz AP
?microUSB for a 3G/4G modem, or for power input
?Station or AP mode wireless
?Passive PoE output (same as input voltage)
- CPU
Qualcomm Atheros AR9331 400 MHz
- RAM
64MB DDR2
- Ethernet
2x 10/100 Mbit/s Ethernet with Auto-MDI/X
- Storage
16MB built in flash storage
- Wireless
AR9331, 2GHz 802.11b/g/n built in
- Antenna
1.3dBi built in
- Power input
Passive PoE 10-57V, 24V 0.8A PSU included, supports powering from USB
- Power output
Pasive PoE output, up to 500mA on Ether 2
- Case dimensions
68x68x19mm
- Temperature
-10C to +70C tested
- OS
MikroTik RouterOS v6, Level 4 license
- Included
mAP device, 24V 0.8A power adapter, microUSB type B to USB type A adapter
