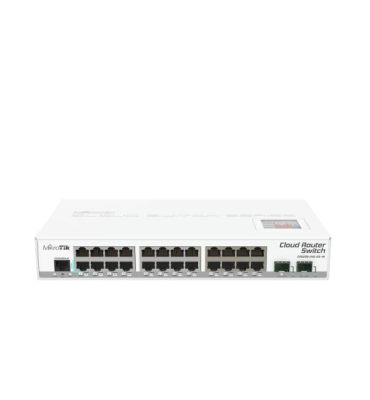

CRS226-24G-2S+IN
CRS226-24G-2S+IN
CRS226-24G-2S+IN
Προγραμματιζόμενο δικτυακό router
Kωδικός 004343
Cloud Router Switch is our new member of our Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
The CRS226 uses a new class of switch chips, which allows us to have two SFP+ ports for 10G connectivity.
?Fully manageable L3 switch, full wire speed switching
?Configure ports as switch, or for routing
?If required, full RouterOS power right there
?SFP+ ports for 10G connectivity
CPU

Qualcomm Atheros QCA8519 400 MHz

Memory

64MB

Ethernet

24x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X

SFP

Two 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support. First port supports 1.25G/10G modules, second port only 10G modules.

Storage

128MB Onboard NAND with multiple OS partition support

Serial port

One RJ45 serial port

Extras

Reset switch; beeper; voltage and temperature monitoring, touchscreen LCD

Power options

8-28V, 24V 1.2A PSU included, PoE in: 8-30V on Ether1

Case dimensions

285x145x45mm

Temperature

-35C to +65C tested

OS

MikroTik RouterOS v6, Level 5 license

Included

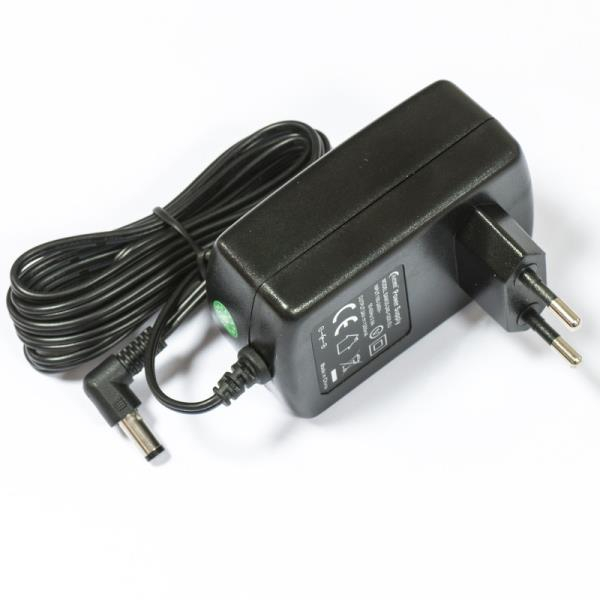

CRS switch, power adaper

pdf

Φυλλάδιο Προϊόντος CRS226-24G-2S+IN της ISNet

(μέγεθος: 91 KB | ενημερώθηκε: 26-09-2018)
Download
pdf

εγχειρίδιο προιόντος CRS226-24G-2S+IN

(μέγεθος: 311 KB | ενημερώθηκε: 26-09-2018)
Download
