MES SAM 9160
MES SAM 9160

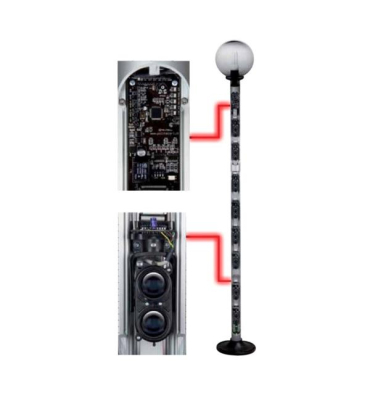

Στύλος IR 1,6μέτρα PARVIS 6 Δέσμες 3TX+3RX χωρίς λάμπα
Kωδικός 004712
The photo-devices with pulse and synchronized infrared beams create an invisible and discreet barrier, because fastened to an aluminum structure placed inside the polycarbonate body with standard diameter for sustenance of the lighting bodies. In fact, thanks to the different types of sealing covers, it is possible to finish off the poles with the various models of lighting bodies available on the market. This and other special characteristics have rendered the product patented on a European level.The electronics allow to discriminate at onset the passage of small animals; alternatively, it is possible to command the exclusion of the first two rays at a distance (alarm control unit).The number of double TX and RX beams, their rotation by 180° horizontally and by 20° vertically, placed in a single column, allow to achieve protection, following any type of geometric shape of the site.
Maximum internal distance of use

400 m

Maximum external distance of use

100 m

Synchronization

Wire

Optical lens with dual beam

YES with 35 mm in AND lenses

Photo devices

Pulsed beams, working wave 950 NM

Maximum double beam configuration inside column

4TX + 4RX

Beam arrangement

Parallel

Circuit power supply

13,8 Vcc

Circuit absorption

From 135 to 150 mA per column, based on the number of beams housed

Heater absorption

24 Vac

Thermostat heater absorption


From 30 to 50W per column, based on the number of beams housed

Operating temperature

from -25 to +65° C

Alarm outputs

Relay with NC/NO free contacts

Tamper protection output

Column opening tamper protection

Environmental disqualification from fog

YES with special OC output (signal attenuation at 90%)

Beam anti-masking

YES with special OC output

RS 485 serial output

NO

Degree of protection

IP 54

Pole size Diam. xH

80mm x from 1200 to 4000 mm

pdf

Φυλλάδιο Προϊόντος MES SAM 9160 της ISNet

(μέγεθος: 103 KB | ενημερώθηκε: 11-01-2017)
Download
