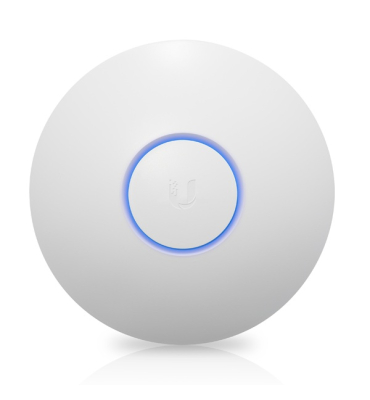

UNIFI UAP-AC-LITE
UNIFI UAP-AC-LITE
Ασύρματος δικτυακός αναμεταδότης
Kωδικός 004355
UAP-AC-LITE is a model of Ubiquiti Unifi AP that supports 802.11ac standard providing bandwidth up to 867Mbps on band 5GHz. The band 2.4GHz offers up to 300Mbps using the two integrated 2x2 MIMO antennas. UAP AC LITE can simultaneous operation in both bands (2.4 and 5 GHz), allows to connect clients to 2.4GHz with simultaneous 5GHz efficient uplink connection. The device has one Gigabit Ethernet port and supports Roaming.

The device is sold with power supply and mounting set .

UniFi AP LITE - The most important features

Free controller (UNIFI 3.0)
Dual-band radio (2.4 and 5 GHz)
Support for 5GHz 802.11ac
Easy to mount on a wall or ceiling (mounting hardware included)
Aesthetic appearance and LED Indicating device status
Power over Ethernet (PoE)
Dimensions

160x160x31,45 mm

Weight

170g (185g with Mounting Kits)

Networking Interface

10/100/1000 Ethernet Ports

Buttons

Reset

Power Method

Passive Power over Ethernet 24V

Power Supply

24V, 0.5A PoE Gigabit Adapter included
Max. Power consumption 6.5W

Energy Saving

Supported

Wireless Security

WEP, WPA-PSK, WPA-TKIP,
WPA2 AES, 802.11i

Certifications

CE, FCC, IC

Mounting

Wall/Ceiling (Kits Included)

Operating Temperature

-10 to 70°C

Operating Humidity

5 - 95% Condensing

Antennas 2.4 GHz

2x integrated (Support for 2x2 MIMO with Spatial Diversity)

Antennas 5 GHz

2x Integrated (support for 2x2 MIMO with Spatial Diversity)

Max. TX Power

2.4 GHz 20 dBm
5 GHz 20 dBm

VLAN

802.1Q

Advanced QoS Per-User

Rate Limiting

Guest Traffic Isolation

Supported

WMM

Voice, Video, Best Effort, and Background

Concurrent Clients

200+

Supported Data Rates (Mbps)

802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n : MCS0 - MCS23 (6.5 Mbps do 450 Mbps), HT 20/40
802.11ac : MCS0 - MCS9 (6.5 Mbps do 1300 Mbps), VHT 20/40/80
802.11b : 1, 2, 5.5, 11
802.11g : 6, 9, 12, 18, 24, 36, 48, 54
