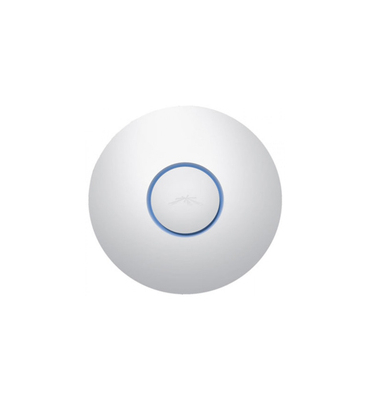

UNIFI UAP-AC-PRO
UNIFI UAP-AC-PRO
Ασύρματος δικτυακός αναμεταδότης
Kωδικός 004354
UniFi AP-AC-Pro (UAP-AC-Pro) Indoor/Outdoor AP. The fastest UniFi model with speeds of up to 1300 Mbps in the 5 GHz radio band and up to 450 Mbps in the 2.4 GHz radio band. The UAP-AC-Pro offers simultaneous dual-band operation.
Scalable Enterprise WiFi System with Revolutionary Software Controller

The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed. The Access Point has a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. It is powered using the included Power over Ethernet adapter so that you can provide power and data using a single cable.

The UniFi Enterprise WiFi System includes the UniFi Controller software. The software installs on any PC within the network and is easily accessible through any standard web browser. Using the UniFi Controller software, an Enterprise WiFi network can be instantly configured and administered without any special training. Real-time status, automatic UniFi device detection, map loading, and advanced security options are all seamlessly integrated.

Features
Aestheitic industrial design with unique LED provisioning ring
Sleek wall-mountable and ceiling tile mountable design (all accessories included)
Includes Power over Ethernet capability for single cable wiring (supplies both power and data)
Virtual UniFi Controller software interface (no expensive WiFi hardware controller/switch needed)
Highly intuitive setup and configuration with many powerful features (no special training needed)
Scalable to hundreds of devices while maintaining a single unified management system
Dimensions

196.7 x 196.7 x 35 mm

Weight

350 g (450 g with Mounting Kits)

Networking Interface

(2) 10/100/1000 Ethernet Ports

Buttons

Reset

Wi-Fi Standards

802.11 a/b/g/n/ac

BSSID

Up to Four Per Radio

Power Method Passive

Power over Ethernet (48V), 802.3af Supported

Power Supply

8V, 0.5A PoE Adapter (Included)

Maximum Power

Consumption 20 W

Wireless Security

WEP, WPA-PSK, WPA-TKIP,
WPA2 AES, 802.11i

Certifications

CE, FCC, IC

Mounting

Wall/Ceiling (Kits Included)

Operating Temperature

-10 to 70°C (14 to 158° F)

Operating Humidity

5 - 95% Non-condensing

Antennas

3 Integrated Dual-Band (Supports 3x3 MIMO with Spatial Diversity)

Max. TX Power

2.4 GHz : 22dBm
5 GHz : 22 dBm

VLAN

802.1Q

Advanced QoS

WLAN prioritization

Guest Traffic Isolation

Supported

WMM

Voice, video, best effort, and background

Concurrent Clients

200+

Supported Data Rates (Mbps)

802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n : MCS0 - MCS23 (6.5 Mbps do 450 Mbps), HT 20/40
802.11ac : MCS0 - MCS9 (6.5 Mbps do 1300 Mbps), VHT 20/40/80
802.11b : 1, 2, 5.5, 11
802.11g : 6, 9, 12, 18, 24, 36, 48, 54
