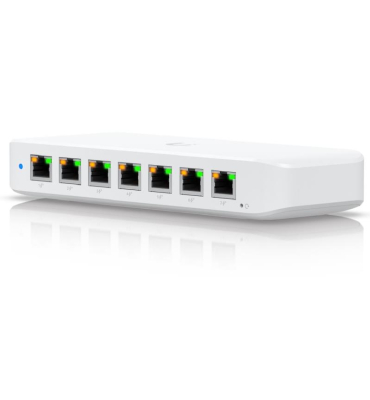

A compact, 8-port, Layer 2 GbE PoE switch with versatile mounting options. The switch has 1 PoE in port and 7 PoE out ports with PoE 802.3af/at with max wattage 30W per port. Switch is managed by UniFi network providing central management and cloud access.

Max PoE budget depend on method how switch is powered:

 60W PoE++ input: 45W
 DC adapter input: 52W
 Passive PoE adapter input: 45W

Package content

 switch
 power adapter 54V/3,9A
 mount kit

Technical parameters

Connectors and Interfaces

LAN speed:(8) 10/100/1000Mbps

Power

Power type:DC connector, PoE
PoE type:PoE-Out + PoE-In
PoE-Out standards:802.3af, 802.3at
PoE Out ports:7
PoE budget [W]:52
Max. power consumption [W]:60
Power via connector/terminal:44 .. 57V DC

Physical characteristics

Design:On the wall, Desktop
Fans:Without fan
Chassis design:Plastic
Buttons:Reset
Operating temperature [°C]:-15 up to 45
Width [mm]:203
Height [mm]:33
Depth [mm]:76

General

Switchning capacity [Gbps]:8

Software

Management:UniFi controller
Features:VLAN
