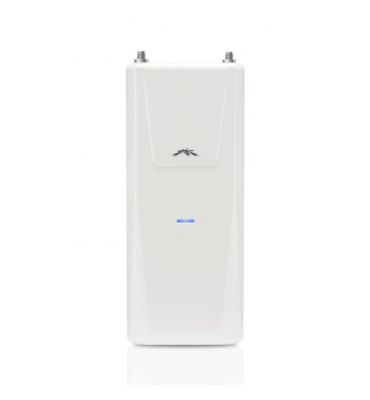

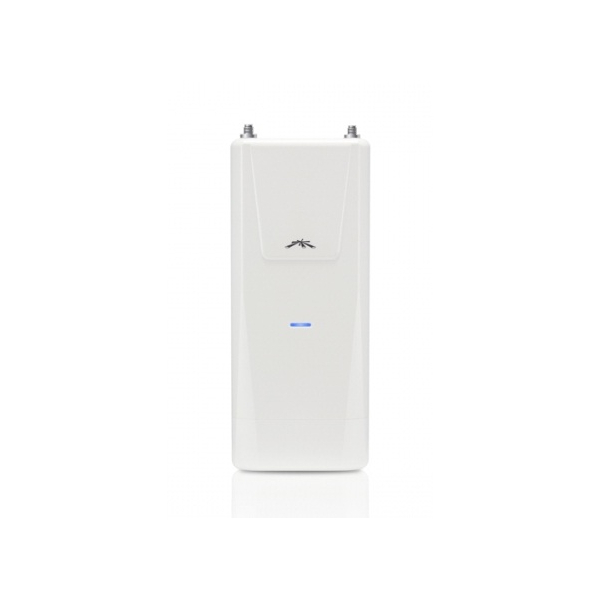

UNIFI UAP-OUTDOOR+
UNIFI UAP-OUTDOOR+
Ασύρματος δικτυακός αναμεταδότης
Kωδικός 004357
Designed for noisy, high-density environments, the UAP-Outdoor AP+ utilizes our innovative Multi-Lane RF technology to provide superior capacity and throughput. The UAP-Outdoor AP+ includes two external antennas and a secondary Ethernet port for bridging. It supports 802.11n MIMO, with speeds of up to 300 Mbps and a range of up to 183 m (600 ft). It includes two 5dBi external antennas and 2x10/100Mbps Ethernet ports. UAP-Outdoor AP+ supports both 48V passive PoE and 802.3af powering options. Main features Utilize Multi-Lane RF Technology for high-density applications Up to 28dBm 2.4GHz 2x2 MIMO Networking///Wireless interface 2x 10/100Mbps Ethernet ports 48V passive PoE and 802.3af support UniFi Software main features Zero Handoff Roaming Auto-detection of new APs Multi-Site Management Detailed Analytics WLAN Groups Networking///Wireless Uplink Guest Portal/Hotspot Support Multi-Lane RF Technology Networking///Wireless client devices in high-density areas experience significant interference and noise stemming from multiple APs using the same operating band.With the launch of the UniFi AP-Outdoor AP+, Ubiquiti Networks introduces our patented Multi-Lane RF? technology, which optimizes the operating channel and rejects interference using specialized circuitry, the High-Selectivity Receiver (HSR).Our innovative Multi-Lane RF technology isolates signalson the operating channel and removes adjacent channel interference. Networking///Wireless capacity and throughput areincreased in high-density areas, and multiple APs can operate in close proximity.When the UniFi AP-Outdoor AP+ operates on channel 6, its HSR filter specifically eliminates all non-channel 6 frequencies, creating a clean spectrum with minimal noise. So with Multi-Lane RF technology, you truly have three high-speed, multi-lane channels (1, 6, and 11) available for superior capacity and throughput.
Dimensions

205 x 83 x 37 mm

Weight

250 g (without Antennas)
294 g (with Antennas)

Networking Interface

10/100 Ethernet Ports

Buttons

Reset

Antennas

External 5 dBi Omni Antennas Included
191 mm (Length), 13 mm (Diameter)

Wi-Fi Standards

802.11 b/g/n

Power Method

Passive Power over Ethernet (48V), 802.3af Supported

Power Supply

48V, 0.5A PoE Adapter (Included)

Maximum Power Consumption

8 W

Maximum TX Power

28 dBm

BSSID

Up to Four Per Radio

Power Save

Supported

Networking///Wireless Security

WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i

Certifications

CE, FCC, IC

Mounting

Wall/Ceiling (Kits Included)

Operating Temperature

-30 to 65° C

Operating Humidity

5 - 95% Non-Condensing

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Traffic Isolation

Supported

WMM

Voice, Video, Best Effort, and Background

Concurrent Clients

100+

Supported Data Rates (Mbps) 802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Supported Data Rates (Mbps) 802.11b

1, 2, 5.5, 11 Mbps

Supported Data Rates (Mbps) 802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

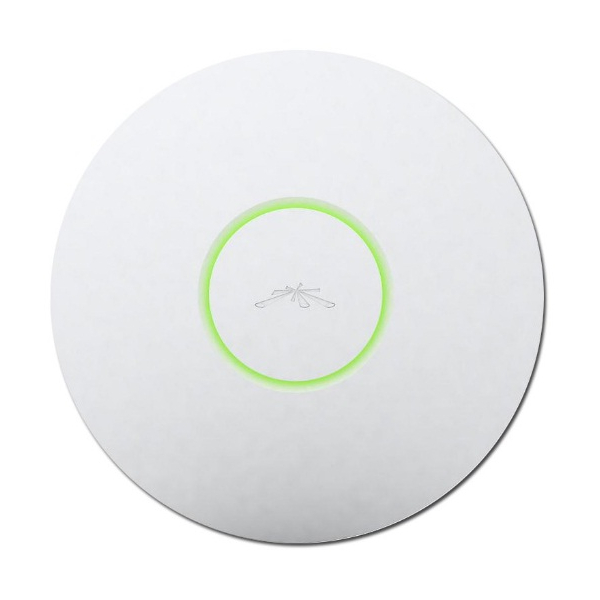

UNIFI UAP
Μεγέθυνση
UNIFI UAP Ασύρματος δικτυακός αναμεταδότης
UBIQUITI
Kωδικός 004352

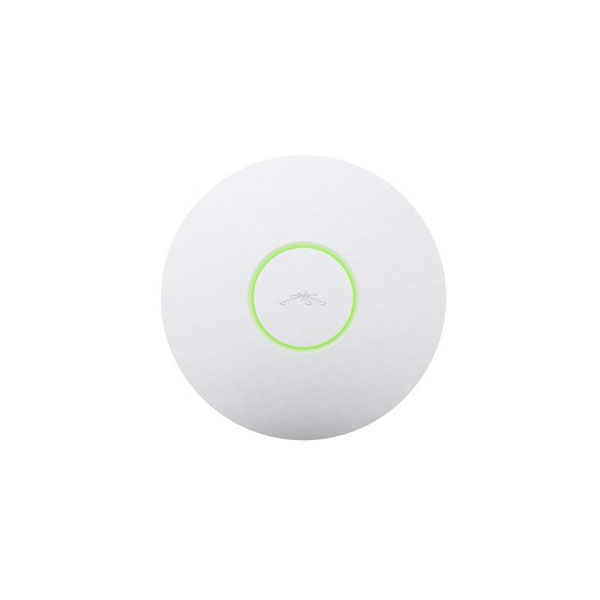

UNIFI UAP-LR
Μεγέθυνση
UNIFI UAP-LR Ασύρματος δικτυακός αναμεταδότης
UBIQUITI
Kωδικός 004353

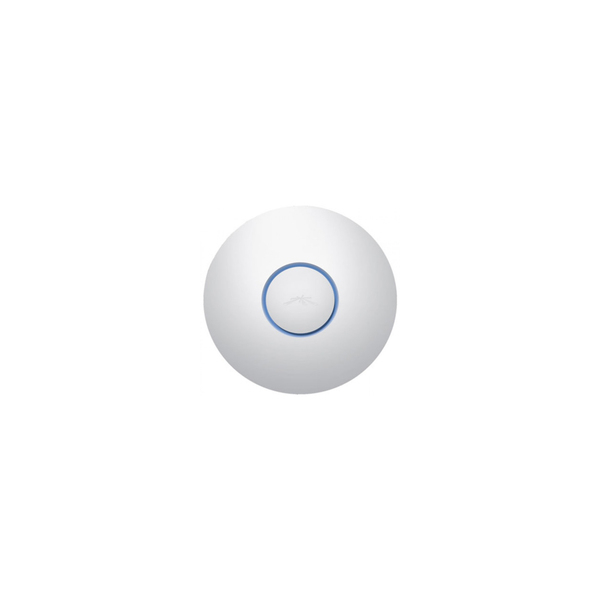

UNIFI UAP-AC-PRO
Μεγέθυνση
UNIFI UAP-AC-PRO Ασύρματος δικτυακός αναμεταδότης
UBIQUITI
Kωδικός 004354

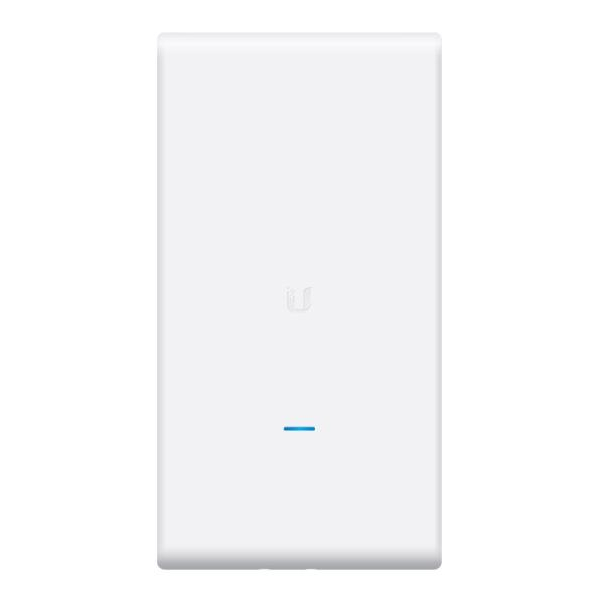

UNIFI UAP-AC MESH PRO
